Why rollers instead of balls
A ball touches a raceway at a point; a roller touches along a line. For the same size, line contact spreads the load over a larger area, so roller bearings carry heavier loads and are stiffer than ball bearings. The price is more friction, a lower speed capability and more sensitivity to misalignment. That trade-off is the reason both families exist, and it is compared in more detail in ball vs roller bearings.
The four common roller shapes are cylindrical, needle, tapered and spherical. Each is built for a specific load direction and tolerance for angular error, and each is found in a matching bearing family.
The four roller types at a glance
| Roller | Shape | Load direction | Bearing line |
|---|---|---|---|
| Cylindrical | Straight cylinder, length about equal to diameter | Radial; axial only with ribbed designs | Cylindrical roller bearing |
| Needle | Long, thin cylinder, length several times the diameter | Radial in a very small section | Needle roller bearing |
| Tapered | Truncated cone | Combined radial and one-way axial | Tapered roller bearing |
| Spherical | Barrel with a convex profile | Heavy radial plus axial, tolerates misalignment | Spherical roller bearing |
Thrust bearings use their own variants: cylindrical rollers lying flat in a thrust cage, and spherical thrust rollers set at an angle. Those are found in thrust roller bearings.
Cylindrical and needle rollers
A cylindrical roller is the simplest shape and the easiest to manufacture. It carries high radial load, runs reasonably fast and gives stiff support, which is why cylindrical roller bearings are used in gearboxes, large electric motors and rolling mills. The roller ends are normally slightly domed or cut with a relief so the end faces slide cleanly against the ring rib in designs that carry some axial load.
Needle rollers are cylinders with a length typically several times their diameter. Their small diameter means a bearing with a very thin cross-section, so a needle bearing fits where space is limited, such as in gear pumps, rocker arms and transmissions. Needles are more sensitive to misalignment and skewing, so the shaft and housing should be accurate and sufficiently hard. Cage design is critical in needle bearings, and in some cases full complement designs without a cage are used for low speed and higher load.
Tapered rollers
A tapered roller is a truncated cone. In a tapered bearing, the raceways of cone and cup are also conical, and all the cone surfaces meet at one point on the axis. This geometry makes pure rolling possible and lets the bearing carry combined radial and axial load in one direction, which is why they are used in pairs on wheel hubs and gearbox shafts. The large end of the roller is spherical and rides on a rib on the cone, a contact that guides the roller.
The angle of the cone sets the ratio of radial to axial capacity: a steeper angle gives more axial capacity. Setting the bearing clearance or preload is part of assembly, and it is a topic covered in tapered roller bearings. Dimensions follow ISO 355 for metric series, and inch series are also widely used.
Spherical rollers
A spherical roller has a convex barrel profile, and it runs in an outer ring with a spherical raceway. That arrangement makes the bearing self-aligning: the inner ring and roller set can tilt relative to the outer ring, so the bearing tolerates shaft deflection and housing misalignment. With two rows of rollers, it carries heavy radial load and axial load in both directions. This is why spherical roller bearings dominate in mining, paper machines, vibrating screens and similar heavy-duty work, as noted on the spherical roller bearing page.
Profile and crowning: why no roller is perfectly straight
A perfectly straight roller would concentrate stress at its ends, a problem known as edge loading, where a high peak causes early fatigue. To prevent this, roller profiles are slightly crowned. A logarithmic profile, which is a gentle curve on the roller body, spreads stress more evenly under load and under small misalignment. The crown is only a few micrometres deep, yet it is a major factor in life and a reason that two bearings with the same designation can perform differently.
Profile quality is a feature of the plant's grinding and checking capability. Buyers do not normally specify a numerical profile for standard bearings, but for OEM programs and custom parts it can be agreed with the plant and checked on samples.

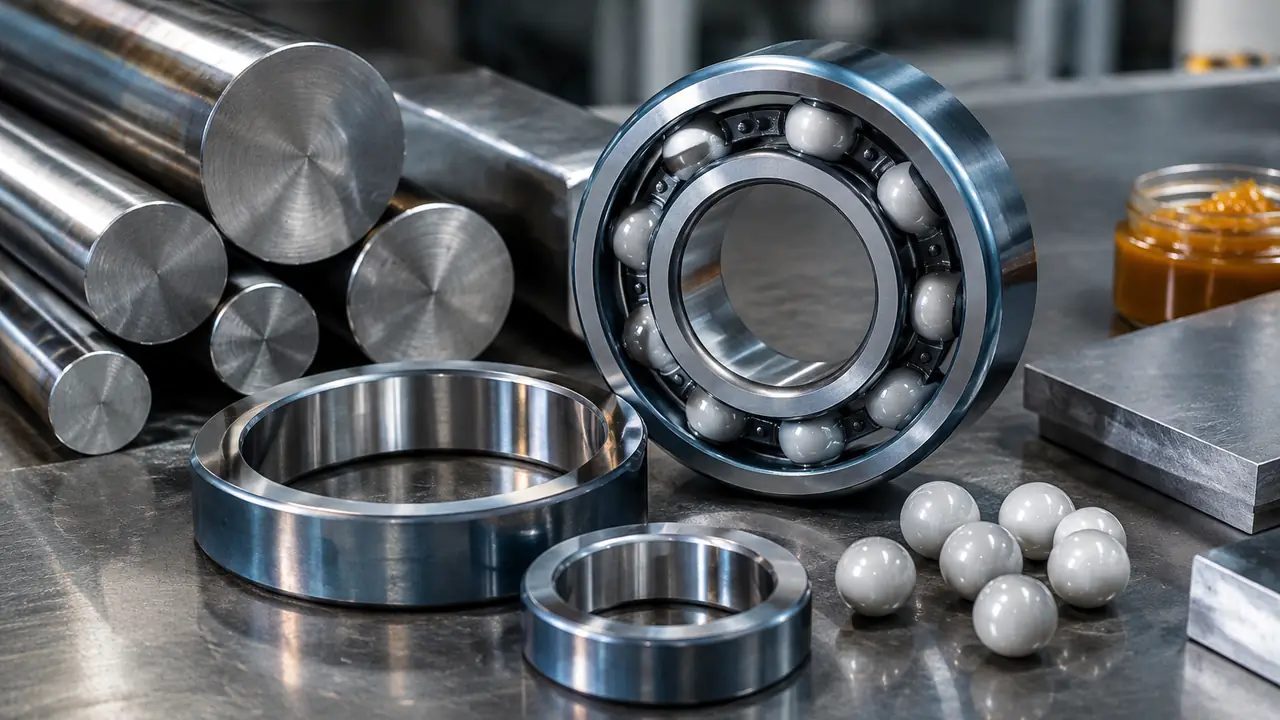

Materials, hardness and finish
Most rollers are made from high-carbon chromium steel and through-hardened, see GCr15 and 52100 bearing steel. Tapered rollers for heavy duty may use carburising steel, with a hard case and a tougher core. Rollers are formed, hardened, ground to diameter and length, lapped to a smooth finish, and finally sorted by diameter so that all the rollers in one bearing are within a narrow band. Uneven roller diameters cause load to concentrate on the largest elements.
Roller damage and what it tells you
Rollers show their history. Even polishing along the length with a clean track is normal. Skewing marks, where the roller has run at an angle, point to misalignment or a cage problem. Edge wear and chipped ends suggest heavy axial loading or shock. Smearing, a dull scuffed band, happens when rollers slide instead of roll, often because the bearing was under-loaded at speed or lubricant was missing at start-up. Flaking on the roller body starts with fatigue, usually from overload or contamination.
For this reason, retaining a returned sample and noting the roller condition helps a sourcing desk and a partner plant trace problems back to the cause. Roller bearings also usually need a minimum load to roll properly, which is easy to forget in lightly loaded fans or idler positions. If your application is light, tell the plant, since a different series or a ball bearing may suit the job better.
What to state when ordering
- Roller type and bearing designation, or roller dimensions if you order loose rollers.
- Material and hardness range, and the standard behind them.
- Profile requirement: standard, logarithmic or drawing-specific.
- Diameter sorting and lot size, with packaging that prevents rust and mixing.
- Marking, batch records and any inspection data needed.
Loose rollers are components and are counted in large quantities, while complete bearings follow the reference ranges on the MOQ and lead time page. The desk can coordinate partner plants for both; send the drawing or the designation through the quote form. Dimensions should always be confirmed against the datasheet and the drawing before ordering.
